Environmental Water Quality Monitoring | Surface Water & Discharge

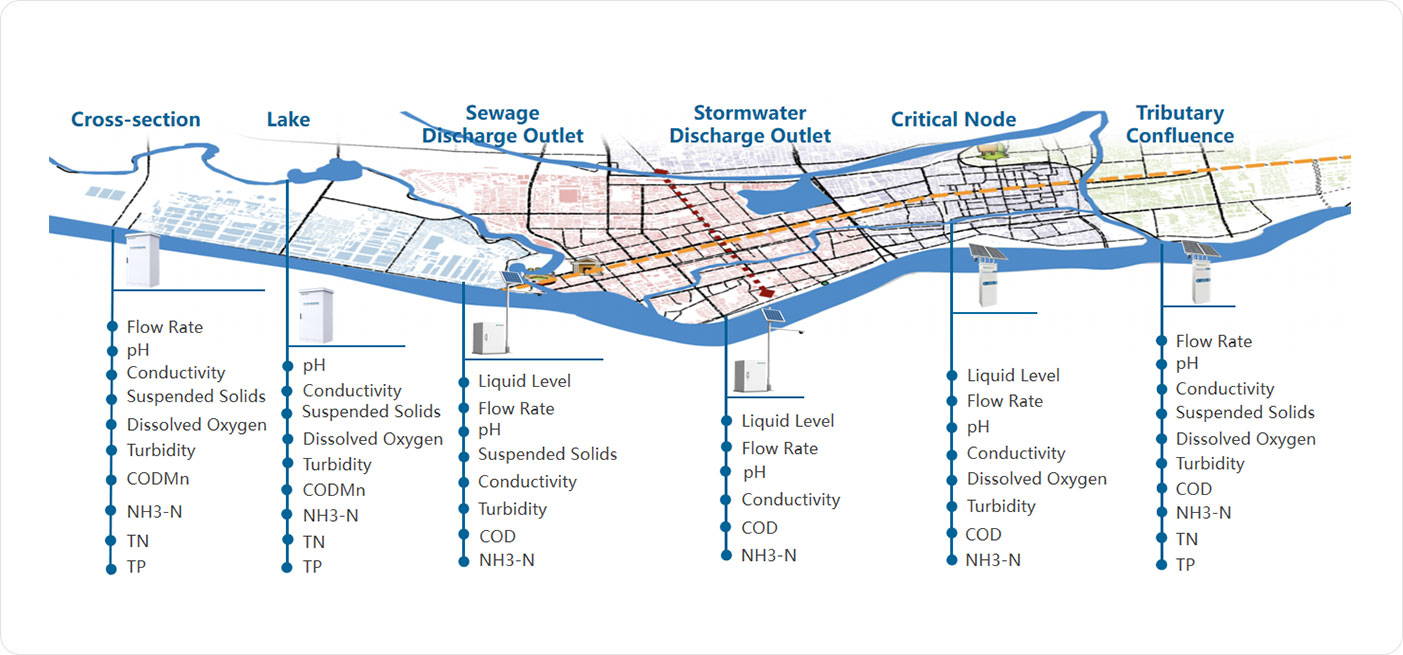

Application in River-Lake Grid-Type Monitoring Scenarios

【CONTENTS — Environmental Sub-Scenarios】

1. River & Stream Quality Monitoring

2. Lake & Reservoir Monitoring

3. Industrial & Municipal Discharge Outlet (Effluent Outfall)

4. Wetland & Estuary Ecological Monitoring

5. Groundwater Quality Monitoring

6. Cross-Border & Transboundary River Monitoring

Rivers & Streams

【Rivers & Streams Monitoring】

Rivers are the arteries of the terrestrial water cycle — and the first receivers of pollution from industry, agriculture, and urban runoff. Real-time continuous monitoring at fixed stations, combined with event-triggered automatic sampling, allows regulators, environmental agencies, and basin management authorities to track water quality trends, detect contamination events, and make enforcement decisions based on data, not guesswork.

River monitoring is one of the most demanding deployments for water quality sensors: fluctuating flow velocity, debris, seasonal turbidity swings, biofouling from algae and biofilms, and the need for months-long unattended operation all place extreme demands on sensor durability and stability.

【Key Monitoring Challenges】

• Flow velocity fluctuates dramatically with rainfall events — sensors must withstand flood conditions without displacement or damage

• First-flush pollution events (the initial, most contaminated runoff) last only hours and must be captured in real time or missed entirely

• Long river networks require distributed monitoring at multiple points — tributaries, main channel, upstream/downstream of discharge points

• Biofouling from algae and aquatic organisms builds rapidly on submerged sensors in warm months, causing measurement drift

• Power supply is unavailable at most mid-river stations — solar and battery systems must support 24/7 operation

【Key Parameters — Rivers & Streams】

Parameter	Typical Target / Range	Why It Matters for This Application
pH	6.0 – 9.0 (Class II standard)	Ecosystem health baseline; acid mine drainage and industrial discharge detection; fish kill risk indicator
Dissolved Oxygen (DO)	> 5 mg/L (aquatic life threshold)	Primary indicator of river ecological vitality; organic pollution load correlate
COD (UV254 optical)	< 20 mg/L (Class II)	Organic pollution load from industrial and municipal sources; continuous trend monitoring
Ammonia Nitrogen	< 1.0 mg/L (Class II)	Agricultural runoff, sewage discharge, and fish toxicity indicator
Turbidity	Baseline + event spike	Rainfall-driven erosion events, construction site runoff, algal bloom cycles
Conductivity	Site baseline	Tracer for industrial discharge events, deicing salt runoff, and salinity intrusion
ORP	Positive (> 0 mV)	Organic pollution and anaerobic condition indicator; industrial reducing waste detection
Temperature	Continuous	Thermal pollution from power plant cooling discharge; DO solubility calculation

【Recommended Linksens Product Configuration】

Linksens Product	Parameters Measured	Recommended For This Sub-Scenario
Seven-Parameter Water Quality Probe	pH, DO, EC, Turbidity, NH4+, ORP, Temp	Fixed automated river monitoring stations (banks, bridges, buoys)
UV254 COD Sensor (5-beam, self-cleaning)	COD, Turbidity, Temperature	Continuous organic load tracking at key river cross-sections
S-NH131 Ammonia Nitrogen Sensor	NH4+, Temperature	Agricultural runoff-impacted rivers; downstream of WWTP discharges
S-DO011 Optical Dissolved Oxygen Sensor	DO, Temperature	Dissolved oxygen profiling in stratified river pools and impoundments
Multi-channel Transmitter (8-channel)	Up to 8 parameters	Station data integration with telemetry uplink to data center
✅ Customer Value Points ✔ Real-time contamination alerts via RS-485 / GPRS uplink enable emergency response within hours, not days ✔ Continuous COD data replaces costly manual grab sampling — reduces monitoring cost by 60–80% over 3 years ✔ Event-driven data capture (turbidity spikes, pH crashes) provides evidentiary data for pollution source enforcement ✔ Solar-compatible 9–30V DC input allows fully off-grid operation at remote mid-river stations ✔ IP68 + stainless cage installation survives annual flood events without sensor loss

Lake & Reservoir Monitoring

【Lakes & Reservoirs】

Lakes and reservoirs are complex, stratified ecosystems where water quality varies with depth, season, and the balance of nutrient inputs from the surrounding watershed. Thermal stratification in summer creates oxygen-depleted hypolimnia that release phosphorus, iron, and manganese from bottom sediments — degrading water quality throughout the water column. Without vertical profiling and continuous surface monitoring, these dynamics remain invisible until a crisis occurs.

For drinking water reservoir managers, limnological monitoring is not optional — it is the first line of defense against taste-and-odor events, algal bloom crises, and metal contamination of treated water supplies.

【Key Monitoring Challenges】

• Thermal stratification creates sharply different conditions at different depths — surface parameters alone give a misleading picture

• Phosphorus and manganese released from anoxic bottom sediments can overwhelm treatment plant coagulation capacity

• Algal bloom development is driven by nutrient loading, temperature, and light — requiring simultaneous monitoring of multiple parameters

• Reservoir draw-down events mix stratified layers, releasing poor-quality bottom water into the supply — requires advance warning

• Large reservoir surface areas make point monitoring unrepresentative — buoy-based monitoring at multiple locations is needed

【Key Parameters — Lakes & Reservoirs】

Parameter	Typical Target / Range	Why It Matters for This Application
DO (depth profile)	Varies by depth	Thermocline location; anoxic hypolimnion detection; fish habitat mapping
pH	6.5 – 9.0	Algal bloom precursor (photosynthesis drives pH above 9); corrosiveness indicator
Turbidity	< 5 NTU (drinking water reservoir)	Algal bloom onset; catchment erosion inputs; suspended solids loading
Temperature (profile)	Continuous at multiple depths	Thermocline depth tracking; seasonal overturn prediction
Conductivity	Site-specific baseline	Catchment runoff events; internal nutrient cycling indicator
ORP (bottom water)	Negative (reducing)	Hypolimnion anoxia and sediment phosphorus/manganese release indicator
Ammonia Nitrogen	< 0.5 mg/L (supply reservoir)	Internal loading from anoxic sediments; catchment agricultural inputs

【Recommended Linksens Product Configuration】

Linksens Product	Parameters Measured	Recommended For This Sub-Scenario
Multiparameter Water Quality Sonde	pH, DO, EC, Turbidity, ORP, Temp	Buoy-mounted surface monitoring at multiple lake locations
S-DO011 Optical DO Sensor (depth-rated)	DO, Temperature	Vertical DO profiling — deploy on winch profiler or at fixed depths
S-ORP042 ORP Sensor (deep deployment)	ORP, Temperature	Bottom-water anoxia detection and sediment release early warning
S-NH131 Ammonia Nitrogen Sensor	NH4+, Temperature	Internal nutrient loading monitoring in stratified reservoirs
S-TUR032 Turbidity Sensor	Turbidity, Temperature	Real-time algal bloom onset and catchment input detection
✅ Customer Value Points ✔ Early detection of thermal stratification onset (2–3 weeks advance notice) enables pre-emptive artificial mixing to prevent anoxia ✔ Continuous bottom-water ORP monitoring gives 48–72 hours warning of manganese and phosphorus release events before they reach the intake ✔ Real-time turbidity monitoring at reservoir inlets enables selective closure of turbid inflow channels during heavy rainfall events ✔ Buoy-based multi-point monitoring provides spatial coverage that bridge-mounted or bank-mounted sensors cannot achieve ✔ Multi-depth profiling data supports stratification models used by water treatment plants to optimize coagulant and oxidant dosing

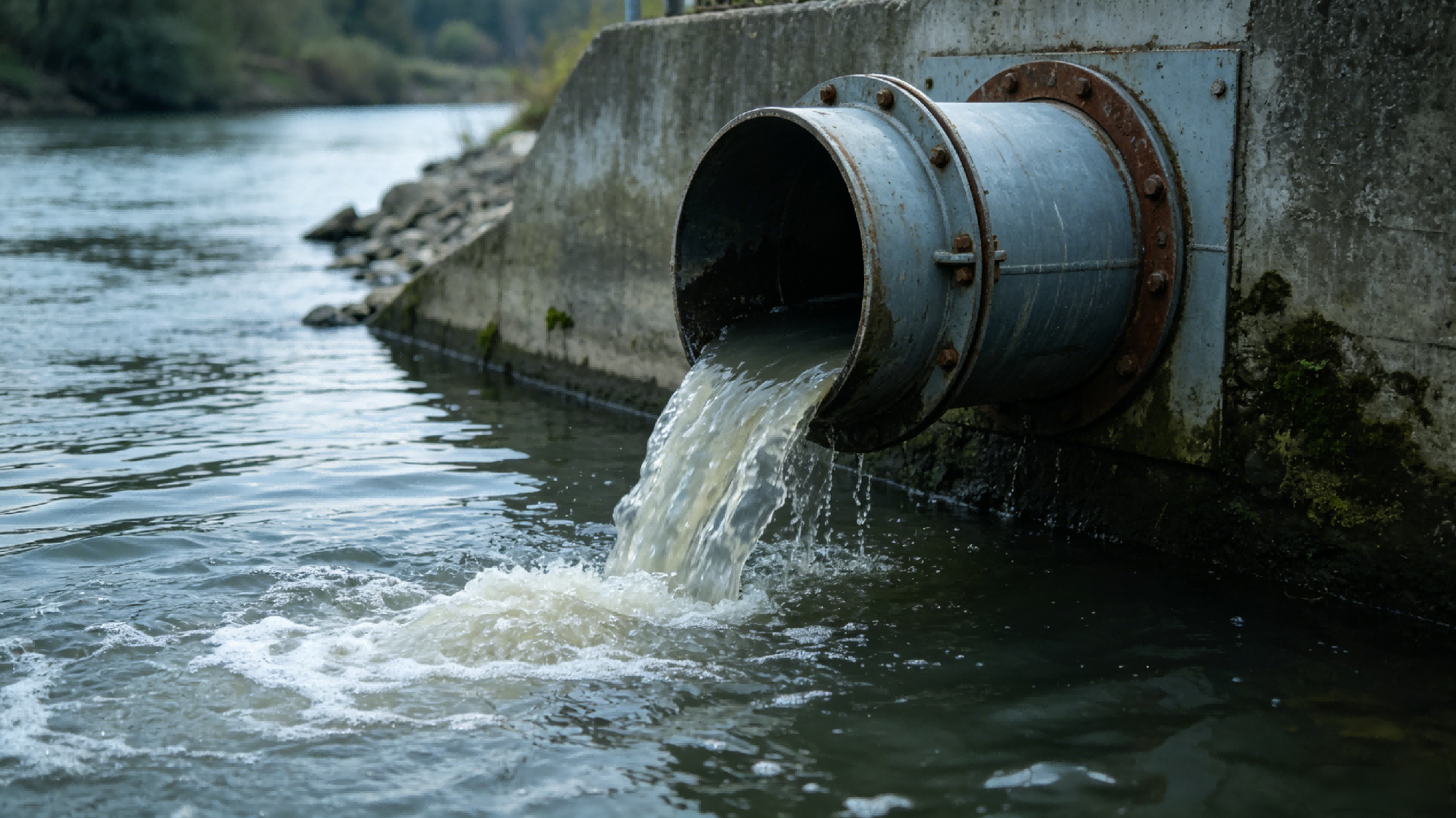

Industrial & Municipal Discharge Outlet

【Pollution Discharge Outlet (Effluent Outfall) Monitoring】

Discharge point monitoring — at industrial effluent outlets and municipal wastewater treatment plant outfalls — is the most direct method for enforcing water pollution discharge standards. In China, discharge monitoring data is required to be uploaded in real time to regional environmental data platforms under the Key Pollutant Discharge Unit automatic monitoring scheme. In Europe and North America, continuous effluent monitoring is required under IPPC / IED permits and NPDES permits respectively.

For industries, accurate discharge monitoring also provides the data needed to demonstrate compliance, avoid penalties, and manage the timing and volume of effluent discharge relative to ambient receiving water conditions.

【Key Monitoring Challenges】

• Industrial effluents can be highly variable in pH, temperature, and chemical content — sensors must withstand aggressive media

• Regulatory requirements for continuous monitoring with data uplink to government platforms require specific communication protocols

• Discharge data is legally sensitive — sensor calibration records and data integrity must be maintained and auditable

• High suspended solids in industrial wastewater rapidly foul optical sensor windows and electrode junctions if maintenance is infrequent

• Temperature-compensated measurements are essential — industrial effluents are often discharged at elevated temperatures

【Key Parameters — Discharge Outlet Monitoring】

Parameter	Typical Target / Range	Why It Matters for This Application
COD (UV254 optical)	Permit-specific limit (typically 50–150 mg/L for industrial)	Primary organic pollution compliance parameter; continuously reported to regulator
pH	6.0 – 9.0 (standard discharge limit)	Neutralization effectiveness monitoring; compliance parameter
Ammonia Nitrogen (NH4+)	< 15 mg/L (Std B); < 8 mg/L (Std A)	Biological treatment effectiveness; compliance discharge limit
Suspended Solids (SS)	< 30 mg/L (Std A)	Physical treatment effectiveness; sedimentation and filtration performance
ORP	Process-specific	Chrome(VI) reduction completeness in industrial wastewater; disinfection verification
Total Phosphorus (TP)	< 1.0 mg/L (sensitive waters)	Eutrophication load; compliance parameter for nutrient-sensitive receiving waters
Turbidity	< 10 NTU (treated effluent)	Correlate with SS; filter performance indicator

【Recommended Linksens Product Configuration】

Linksens Product	Parameters Measured	Recommended For This Sub-Scenario
UV254 COD Sensor (4-beam / 5-beam)	COD, Turbidity, Temperature	Primary effluent COD compliance monitoring — direct upload to environmental platform
S-pH002 pH Sensor (industrial probe)	pH, Temperature	Neutralization tank pH control and discharge compliance
S-NH131 Ammonia Nitrogen Sensor	NH4+, Temperature	Biological treatment effluent NH4+ compliance monitoring
Suspended Solids / Turbidity Sensor	SS/Turbidity, Temperature	Secondary clarifier and filter performance monitoring
S-ORP042 ORP Sensor	ORP, Temperature	Chrome reduction and disinfection process verification
Multi-channel Transmitter with Modbus RTU	Up to 8 parameters	Data integration and upload to national/regional environmental monitoring platforms
✅ Customer Value Points ✔ Continuous discharge monitoring replaces periodic manual sampling — provides complete compliance data record with no gaps ✔ Real-time process feedback enables operators to adjust treatment upstream before an out-of-spec discharge occurs ✔ Automated data upload to environmental platforms satisfies regulatory reporting requirements without manual data entry ✔ Industrial probe options (HF-resistant, high-temperature) ensure sensor stability in chemically aggressive effluents ✔ Tamper-evident data logging provides legally defensible records in the event of enforcement actions or regulatory audits

Wetland & Estuary Ecological Monitoring

【Wetland & Estuary Ecological】

Wetlands and estuaries are among the world's most ecologically productive and biologically sensitive aquatic environments. They provide critical ecosystem services — water purification, flood attenuation, carbon sequestration, and habitat for migratory species — while simultaneously being at the frontline of pressure from coastal development, agriculture, and climate-driven salinity intrusion.

Ecological monitoring in these dynamic, tidally-influenced environments requires sensors that can handle the full salinity range from freshwater to marine, withstand periodic desiccation and inundation, and capture the high-frequency fluctuations in DO, pH, and conductivity that characterize healthy tidal cycles.

【Key Monitoring Challenges】

• Tidal cycles create rapid, large-amplitude swings in salinity, pH, and DO — sensors must measure accurately across the full freshwater-to-marine range

• Anoxic events in poorly-flushed wetland basins and estuarine mudflats cause mass mortality events in benthic communities

• Saltwater intrusion into freshwater wetlands — accelerated by sea-level rise and upstream water abstraction — is difficult to detect without continuous conductivity monitoring

• Nutrient enrichment from agricultural and urban runoff drives macroalgae and phytoplankton blooms that smother seagrass beds

• Physical accessibility is often very poor — sensors must operate for months without maintenance visits

【Key Parameters — Wetland & Estuary Monitoring】

Parameter	Typical Target / Range	Why It Matters for This Application
Conductivity / Salinity	0 – 50 ppt (full range)	Tidal exchange and saltwater intrusion quantification; habitat suitability for estuarine species
Dissolved Oxygen	> 4 mg/L (minimum for benthos)	Anoxic event detection; tidal ventilation effectiveness; hypoxia impact assessment
pH	7.0 – 8.5 (estuarine target)	Ocean acidification monitoring; carbonate chemistry in wetland water
Turbidity	Site-specific tidal baseline	Sediment resuspension during tidal cycles; light penetration for submerged vegetation
ORP	Negative (< 0 mV, anoxic sediments)	Sediment biogeochemistry; sulfide production risk in organic-rich sediments
Temperature	Continuous	Thermal stratification; species habitat suitability; metabolic rate reference
Ammonia Nitrogen	< 0.5 mg/L	Nutrient loading indicator; ammonia toxicity to invertebrates and fish larvae

【Recommended Linksens Product Configuration】

Linksens Product	Parameters Measured	Recommended For This Sub-Scenario
Multiparameter Water Quality Sonde	pH, DO, EC/Salinity, Turbidity, ORP, Temp	Tidally-deployed monitoring sonde on buoy or stake — captures full tidal cycle
S-EC022 Conductivity Sensor (high-range)	EC, Salinity, TDS	Saltwater intrusion monitoring at critical wetland-estuary transition zones
S-DO011 Optical DO Sensor	DO, Temperature	Continuous DO monitoring for anoxic event detection and early warning
S-ORP042 ORP Sensor	ORP, Temperature	Sediment-water interface redox monitoring — sulfide and methane release risk
S-TUR032 Turbidity Sensor	Turbidity, Temperature	Tidal sediment dynamics and light penetration monitoring for seagrass health
✅ Customer Value Points ✔ Tidal DO cycle data reveals extent and duration of hypoxic events that are invisible to weekly manual sampling programs ✔ Salinity intrusion mapping provides early evidence for sea-level rise adaptation planning and freshwater management decisions ✔ Continuous sediment-water ORP data supports carbon sequestration assessment in blue carbon (mangrove, saltmarsh) habitats ✔ Long-term tidal baseline data provides the ecological baseline needed for environmental impact assessments and conservation area management ✔ Low-power, solar-compatible sensor operation is essential for wetland stations with no grid access

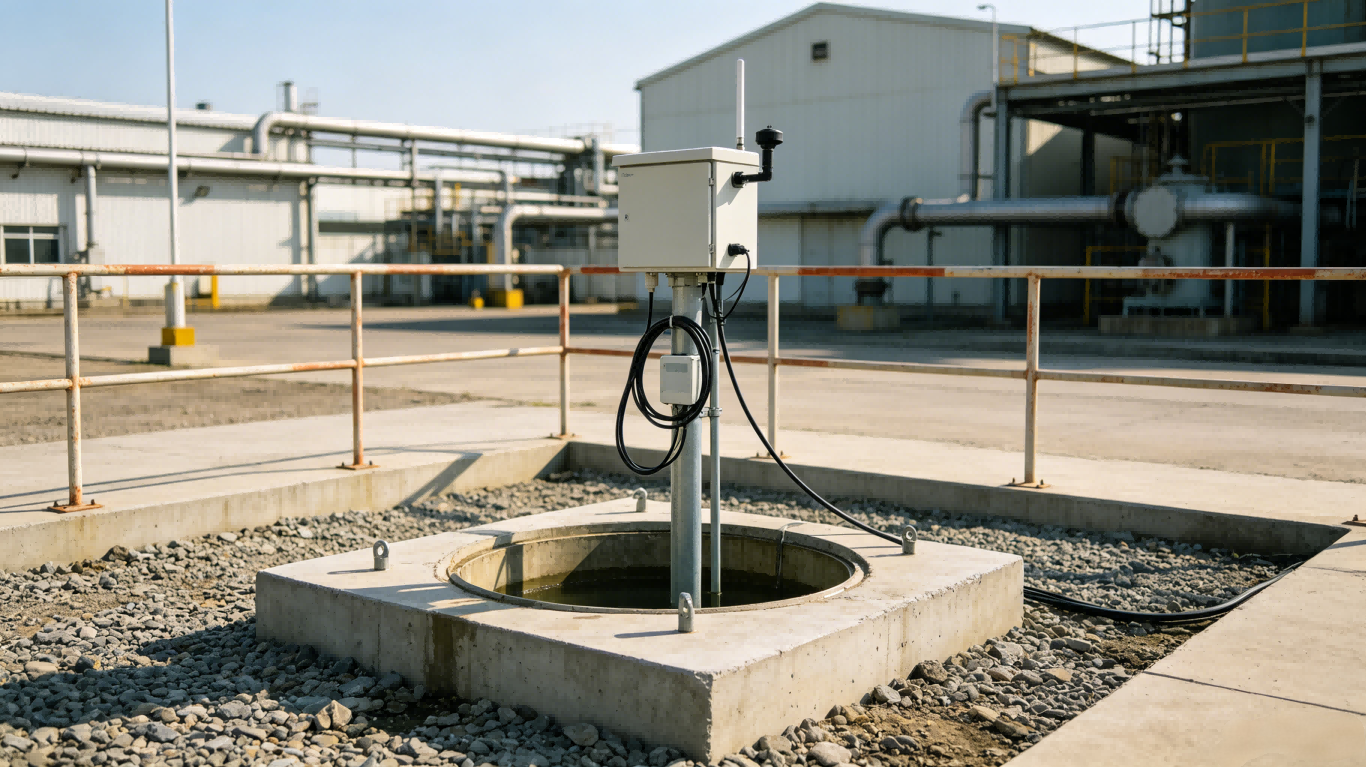

Groundwater Quality Monitoring

【Groundwater】

Groundwater represents approximately 30% of all freshwater on Earth and provides drinking water for billions of people — yet it is also the most invisible and least monitored component of the water cycle. Contamination from industrial sites, landfills, agricultural chemicals, and saltwater intrusion can persist in aquifers for decades, making early detection through monitoring networks critical to preventing long-term resource degradation.

Groundwater monitoring presents unique instrumentation challenges: sensors must fit down narrow monitoring wells, operate in the total darkness of the subsurface, and often run for 6–12 months between service visits on small battery packs.

【Key Monitoring Challenges】

• Monitoring wells are narrow (typically 50–100mm internal diameter) — sensors must be compact and easily deployable on cables

• Water table fluctuations require sensors to handle both submersed and partially-wetted conditions without damage

• Contamination from landfills and industrial sites can create extreme conditions — very low pH, high conductivity, reducing chemistry

• Saltwater intrusion from coastal aquifer over-abstraction requires early detection through conductivity profiling

• Access is restricted — autonomous operation for 6+ months is typically required between maintenance visits

【Key Parameters — Groundwater Monitoring】

Parameter	Typical Target / Range	Why It Matters for This Application
pH	6.5 – 8.5 (natural groundwater)	Industrial and acid mine drainage contamination indicator; carbonate equilibrium
Conductivity / TDS	Site-specific baseline	Contamination plume tracking; saltwater intrusion quantification
ORP	Varies: aerobic (+200 to +500 mV) to anaerobic (-200 mV)	Redox zonation in aquifer; iron/manganese and nitrate reduction zone indicator
Dissolved Oxygen	Varies: 0 to 8 mg/L	Aquifer oxygenation state; aerobic degradation capacity; contamination attenuation
Ammonia Nitrogen	< 0.5 mg/L (natural); elevated = contamination	Landfill leachate and agricultural nitrate/ammonia contamination indicator
Temperature	Stable (seasonal variation < 2°C in deep aquifers)	Geothermal reference; seasonal recharge zone identification
Turbidity	< 5 NTU (natural)	Well purging completeness indicator; particle mobilization during abstraction

【Recommended Linksens Product Configuration】

Linksens Product	Parameters Measured	Recommended For This Sub-Scenario
S-pH002 pH Sensor (compact, cable-deployed)	pH, Temperature	Multi-well pH monitoring network — cable-lowered into narrow monitoring wells
S-EC022 Conductivity Sensor	EC, TDS, Temperature	Saltwater intrusion monitoring and contamination plume conductivity mapping
S-ORP042 ORP Sensor	ORP, Temperature	Redox zonation mapping; contamination attenuation zone characterization
S-DO011 Optical DO Sensor	DO, Temperature	Aquifer oxygenation state monitoring; aerobic/anaerobic zone delineation
S-NH131 Ammonia Nitrogen Sensor	NH4+, Temperature	Landfill leachate and agricultural contamination plume monitoring
✅ Customer Value Points ✔ Early contamination detection allows remediation to begin before a plume reaches a water supply abstraction point ✔ Continuous conductivity monitoring provides the earliest possible warning of saltwater intrusion into coastal aquifers ✔ Automated multi-well monitoring networks dramatically reduce the cost of manual sampling programs for large contaminated site investigations ✔ Long-term ORP and DO trend data supports natural attenuation rate calculations required for regulatory contaminated land assessments ✔ RS-485 Modbus RTU output enables integration with groundwater data management systems and telemetry to remote operations centers

Cross-Border & Transboundary River Monitoring

【Cross-Border & Transboundary River】

Rivers that cross international or inter-provincial borders create unique water quality governance challenges. Each downstream jurisdiction is at the mercy of upstream land use, industrial activity, and pollution control enforcement. Contamination events in upstream countries or provinces have caused international diplomatic incidents, public health crises, and significant economic damage to downstream communities.

Establishing automated monitoring networks at border crossing points, supplemented by upstream early warning stations, allows downstream authorities to receive timely notification of water quality deterioration — hours or days before contaminated water arrives at their intake or territory.

【Key Monitoring Challenges】

• Diplomatic and technical requirements for data sharing between jurisdictions add complexity to network design

• Monitoring stations at border locations are often remote, with no grid power, poor connectivity, and infrequent access for maintenance

• Data must be transmitted in real time to multiple stakeholders — environmental agencies in both countries, water utilities, and emergency responders

• The range of potential contaminants from upstream activities is broad — from industrial chemicals to agricultural pesticides to sediment events

• Baseline data must be established before incidents occur — a monitoring network installed after an event has no comparative baseline

【Key Parameters — Transboundary Monitoring】

Parameter	Typical Target / Range	Why It Matters for This Application
pH	6.0 – 9.0	Broad contamination indicator; acid industrial discharge detection
COD (UV254)	< 20 mg/L (Class II)	Organic pollution loading — first continuous parameter to respond to most contamination events
Conductivity	Site-specific baseline	Highly sensitive tracer for upstream industrial and agricultural discharge events
Turbidity	Site-specific baseline	Erosion events, industrial discharges, and dredging impact detection
Dissolved Oxygen	> 5 mg/L	Organic pollution oxygen demand and ecological health indicator
Ammonia Nitrogen	< 1.0 mg/L	Agricultural runoff and sewage contamination — sensitive early warning parameter
ORP	Positive (> 0 mV)	Reducing industrial waste (cyanide, sulfide) contamination early warning
Temperature	Continuous	Thermal discharge detection; seasonal baseline reference

【Recommended Linksens Product Configuration】

Linksens Product	Parameters Measured	Recommended For This Sub-Scenario
Seven-Parameter Water Quality Probe	pH, DO, EC, Turbidity, NH4+, ORP, Temp	Primary border monitoring station — 24/7 continuous multi-parameter surveillance
UV254 COD Sensor (5-beam, auto-cleaning)	COD, Turbidity, Temperature	Continuous organic load monitoring — most responsive to industrial contamination events
Multi-channel Transmitter with GPRS/4G modem	Up to 8 parameters	Real-time data transmission to multiple stakeholder platforms in different jurisdictions
S-NH131 Ammonia Nitrogen Sensor	NH4+, Temperature	Agricultural runoff and sewage contamination — sensitive early warning parameter
Solar Power System + Battery Backup	Power supply	Off-grid operation at remote border monitoring stations
✅ Customer Value Points ✔ Real-time contamination alerts provide 6–48 hours advance warning — time for downstream utilities to switch intake sources or pre-treat ✔ Continuous baseline data collection before incidents occur makes post-incident source attribution legally defensible ✔ Multi-stakeholder data uplink (GPRS/4G with Modbus TCP) enables simultaneous notification to environmental agencies in both jurisdictions ✔ Full audit trail of calibration records and raw data supports diplomatic and legal processes in cross-border pollution disputes ✔ Solar-powered autonomous operation allows deployment at remote border crossings with no infrastructure cost beyond the sensor system

Frequently Asked Questions

【Frequently Asked Questions — Environmental Monitoring】

Q: How does Linksens' UV254 COD sensor compare to wet-chemistry COD analyzers for continuous environmental monitoring?

A: UV254 optical sensors measure absorbance of ultraviolet light at 254nm, which correlates strongly with organic matter concentration (COD/BOD/TOC) in natural and treated waters. They offer continuous, reagent-free measurement with zero chemical waste — making them ideal for 24/7 monitoring station deployment where wet-chemistry reagent logistics are impractical. Our 5-beam model compensates for turbidity interference, color, and lamp aging, providing stable readings across highly variable natural water conditions. For regulatory permit compliance, where specific analytical methods are mandated, wet-chemistry analysis on grab or composite samples remains the reference method. Many environmental agencies accept UV254 as a real-time operational parameter alongside periodic wet-chemistry confirmation.

Q: How long can Linksens sensors operate unattended in a remote river monitoring station?

A: Under normal conditions in moderate-turbidity surface water, electrochemical sensors (pH, ORP, conductivity) can operate for 2–3 months between calibration visits. Optical sensors (DO, turbidity, UV254 COD) require anti-fouling measures in biologically active environments — copper guards or mechanical wipers extend deployment intervals to 2–3 months in summer, 3–6 months in cooler periods. For truly remote stations visited only quarterly, we recommend the multi-parameter sonde configuration with auto-wiper, combined with data telemetry so quality checks can be performed remotely between visits.

Q: Can Linksens sensors upload data directly to national environmental monitoring platforms in China?

A: Yes. All Linksens online sensors output standard RS-485 Modbus RTU data. Our multi-channel transmitters can be paired with GPRS/4G communication modules to upload data to provincial and national environmental data platforms in the format required by HJ/T 212 (Communication Protocol Standard for Pollution Source Automatic Monitoring) and related standards. We have supported integrations with multiple regional environmental monitoring network operators — contact our technical team to discuss your specific platform requirements.

Q: What is the recommended maintenance schedule for sensors deployed in surface water monitoring stations?

A: Maintenance frequency depends primarily on biological activity (water temperature and nutrient levels) and physical conditions (flow velocity, debris load). General guideline: visit monthly in summer (June–September in temperate regions), every 2 months in spring and autumn, and quarterly in winter. At each visit: clean sensor surfaces, check and replace reference electrode fill solution (for pH/ORP electrodes), perform single-point or two-point calibration with certified standards, inspect cable connections and solar panel performance, and download backup data from local logger. Keeping a calibration log for each sensor is essential for regulatory compliance and data quality assurance.

Tell us your environmental monitoring application — river, lake, discharge point, or multi-site network — and our engineers will design the right sensor configuration for your requirements.

→ sales@linksens-hk.com | www.linksens-hk.com

Applications

Environmental protection

Product recommendations

Have Questions About This Industry? We Have Answers!

Please leave message to get a quotation and solution
